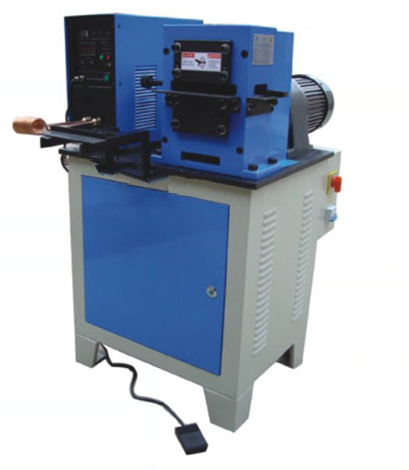

TGH-25 Multi-Functional Heating & End Forging Machine
TGH-25型魚尾加熱兩用機是一種多功能組合機，既可用于對金屬材料進行加熱，又可壓制漂亮的魚尾圖案，一機多用，方便高效，大大提高了工作效率。具有操作簡單、節能省電、高效環保、使用方便等優點，屬于鐵藝行業的高科技環保產品。
TGH-25 Heating & End Forging Equipment is a multifunctional combined machine, which can be used for heating metallic materials and pressing beautiful fishtail patterns, it is of multiple purposes in one unit, convenient & high efficient, as well as greatly improved work efficiency. This machine has such advantages as easy operation, saving power and energy, high efficient & environmental friendly and convenient use, etc, which belongs to a hi-tech environmental-friendly product in the industry of iron craftworks.
TGH-25加熱部分 TGH-25 of Heating Part | TGH-25魚尾壓機部分 TGH-25 of End Forging Part | |||
輸入電壓 Input voltage | 380V/50HZ | 最大加工材料規格Max Sizes of the Stocks to be Processed | 圓鋼 Round steel | Ф14mm |
方鋼 Square Steel | 14×14mm | |||
輸入功率 Input power | 4-25KW | 扁鋼 Flat Steel | 50×10mm | |
電機性能Cycloidal pin-wheel Decelerator | 功率 Power | 2.2(KW) | ||
冷卻水壓 Cooling water pressure | 0.1-0.3MPa | 電壓 Voltage (V) | 380V | |
出水流量 Water output flow | 5-7L/MIN | 頻率 Frequency | 50(HZ) | |
外形尺寸External Size | 1100×760×1240mm | |||
包裝尺寸Packing Size | 960×860×1310mm | |||
凈重/毛重Net/Gross Weight | 280/350kg | |||
